Spurious-Free Lithium Niobate Bulk Acoustic Resonator for Piezoelectric Power Conversion

Abstract

Recently, piezoelectric power conversion has shown great benefits from replacing the bulky and lossy magnetic inductor in a traditional power converter with a piezoelectric resonator due to its compact size and low loss. However, the converter performance is ultimately limited by existing resonator designs, specifically by moderate quality factor (Q), moderate electromechanical coupling (k2t), and spurious modes near resonance. This work reports a spurious-free lithium niobate (LiNbO3) thickness-extensional mode bulk acoustic resonator design, demonstrating Q of 4000 and (k2t) of 30% with a fractional suppressed region of 62%. We first propose a novel grounded ring structure for spurious-free resonator design, then validate its performance experimentally. Upon further work, this design could be extended to applications requiring spurious suppression, such as filters, tunable oscillators, transformers, etc.

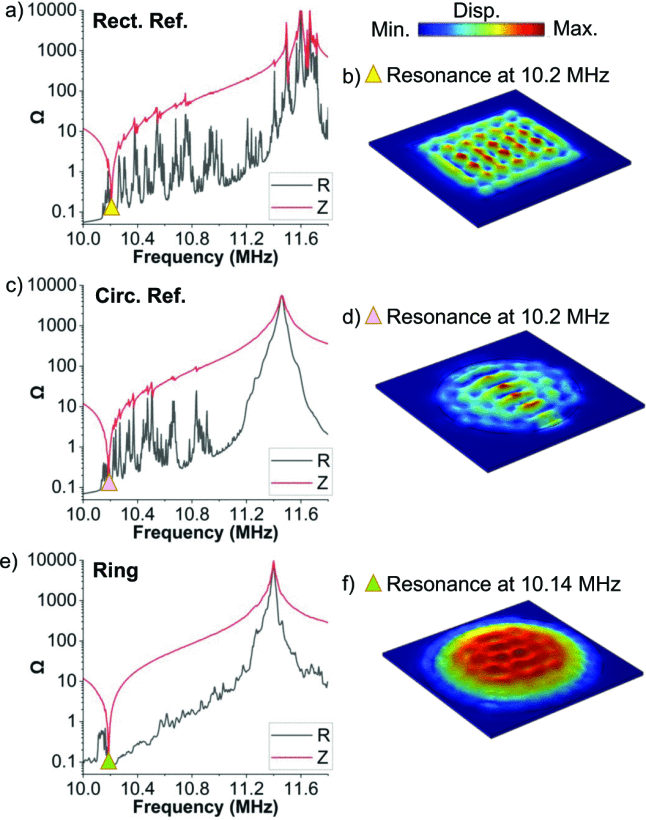

COMSOL simulation of resonators with and without rings for spurious-suppression.
